milling, turning and drilling are three precise processes used to produce custom-designed parts and products. Here is a breakdown of what they are and how they work:
CNC Milling:
CNC milling is a process that uses computer-controlled rotating multi-point cutting tools to remove material from a workpiece and create custom-designed parts or products. The process starts with the creation of a 2D or 3D CAD drawing. This design is then converted into a CNC machine program that instructs the machine's movements and the movement of the tool across the part. CNC milling can be performed using powerful horizontal or vertical CNC milling machines, which use rotating multi-point cutting tools, such as milling cutters and drills, to produce high precision and tolerance parts in prototype, one-off, and small to medium production runs.
CNC milling is versatile and can be used in various industries, producing parts with a range of features and designs, including grooves, chamfers, threads, and cavities. Typical tolerances for CNC-milled parts range from +/-0.02mm to +/-0.1mm, and some machines can achieve even higher tolerances of up to +/-0.01mm or more. Some of the most common CNC milling operations include end milling, plane milling, corner milling, and forming milling.
CNC Turning:

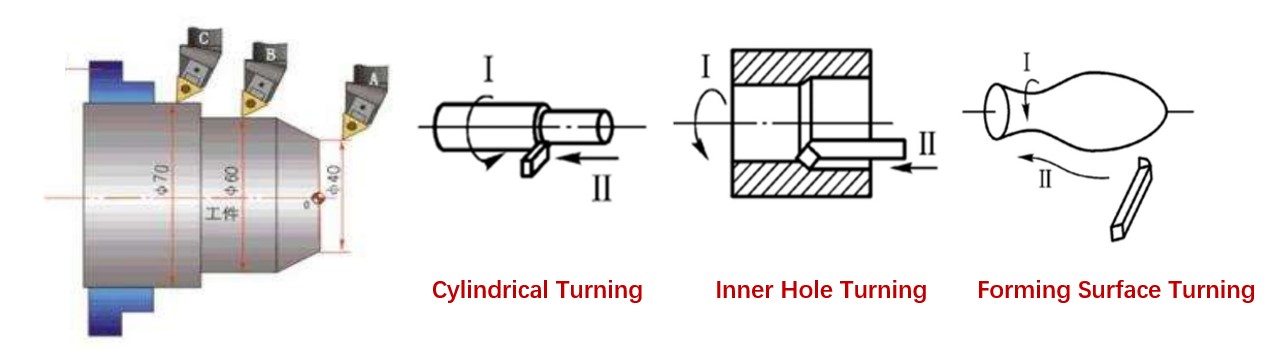

CNC turning is a precision machining process used to produce custom parts and products. In this process, a non-rotating cutting tool is used to describe a helical tool path as the workpiece rotates. The workpiece can be made of various materials such as wood, metal, plastic, or stone and is rotated while the cutting tool is moved along 1, 2, or 3 axes of motion to produce precise diameters and depths. Turning can be performed on the outside or inside of a cylinder (also known as boring) to produce tubular parts with various geometries.
CNC turning is ideal for producing high-precision parts with tight tolerances. It is commonly used in the automotive, aerospace, and medical industries, among others. CNC turning can produce a variety of parts, including shafts, bushings, and couplings, to name a few.
In conclusion, CNC milling and turning are two machining processes used to create custom-designed parts and products with high precision and tight tolerances. These processes are versatile and widely used in many industries.
CNC Drilling:
CNC drilling is a machining process that uses computer-controlled machines to create precise holes in materials such as metal, wood, and plastic. The process involves a drilling tool that rotates and cuts into the material to create the desired hole. The drilling tool is attached to a spindle that is controlled by a computer program, allowing for precise positioning and movement of the tool.
The CNC drilling process begins with the creation of a 2D or 3D CAD drawing, which is then converted into a CNC-compatible file format and uploaded to the machine's computer. The machine operator then sets the drilling parameters, such as the speed and feed rate, based on the material being drilled and the desired hole size.
During the drilling process, the material is securely clamped to a table, and the drilling tool is brought into position using the machine's X, Y, and Z axes. The spindle then rotates the tool at high speeds while the machine moves the tool along the designated path to create the hole.
CNC drilling machines can be used to create holes of varying sizes and shapes, including round, square, and rectangular holes, as well as threaded holes. The process is highly accurate and precise, with tolerances ranging from +/- 0.02mm to +/- 0.1mm or better. CNC drilling machines are commonly used in industries such as aerospace, automotive, and electronics, where precise hole drilling is critical for the functionality of the final product.
